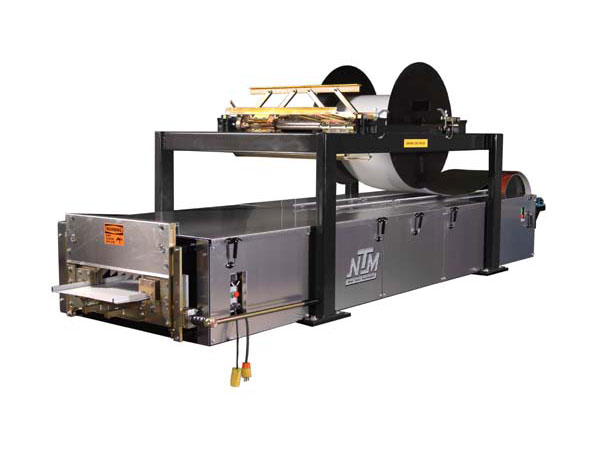

New Tech SSR Multipro Jr.

New Tech SSR Multipro Jr.

The highly versatile SSR Multipro Jr.

000

This state-of-the-art panel machine has the ability to run up to 6 different panel profiles, it can do 1/2” to 1 1/2” high T-panel, 1” high x 1/2” wide mechanically seamed panel (includes a hand seamer), 1 1/2” high x 1/2” wide mechanically seamed panel (also includes a hand seamer), 1-1/2” high x 1/4” wide snap clip panel, 1” snap seam with slotted fastener flange for clipless installation (includes clip relief rollers and automatic “no chip” rotary slotter) and lastly a 1” or 1-1/2” leg Bermuda panel.

This unit comes standard with a 1.5hp 120vac electric motor, new and improved polyurethane drive rollers, hardened stainless steel forming roller system with shear dies, push button RUN/JOG controls at entry and exit ends, a 100’, 10gauge, 20amp extension cord, two sets of bead, pencil or V rib rollers, the EZE CHANGE profile replacement system, power interruption safety circuit and a forward pulling, easy cut manual shear.


Features

  • Polyurethane Drive Rollers
  • Choice of one Hardened Stainless Steel EZE CHANGE™ profile roller system with shear dies.
  • Waterproof NEMA 4 Electrical System
  • Dual Overhead Reel Rack
  • Forward Pulling, Easy Cut Shear
  • UL 90 Rated Panels
  • Push Button RUN/JOG Controls at Entry and Exit Ends
  • 100 Foot, 10 Ga., 20 Amp Extension Cord
  • Length Control Limit Switch
  • One Pair of Bead, Pencil, Striation or V Rib Rollers
  • One Expandable Arbor
  • Welded Tubular Steel Frame
  • 20′ of Run-Out Table
  • Industry’s Best Warranty



Specifications

SSR Panel Machine
Length 12’ 10” (3.9m)
Width 3’10” (1.2m)
Height 4’3” (1.3m) w/ Over Head Rack
1’10” (.6m) w/o Over Head Rack
Weight 2200 lbs. (1000kg)

SSR On Trailer
Length 17’6” (5.3m)
Width 7’ (2.1m)
Height 6’3” (1.9m) with reel
Weight 3800 lbs. (1700kg)

Speed
30 ft/min (9m/min) Approx.

Drive
Polyurethane Rollers

Shear
Manually Powered, Infinitely Adjustable,
Hardened Tool Steel Blades and Dies

Coil Width
15” to 20” (380mm to 500mm)

Materials Formed
Painted Steel 30 ga. to 24 ga. (.3mm to .6mm)
(painted, galvanized, aluminized)
Painted Aluminum .027” to .040” (.7mm to 1.0mm)
Copper 16 oz. to 20 oz. 3/4 Hard
(.5mm to .7mm)
