R1100

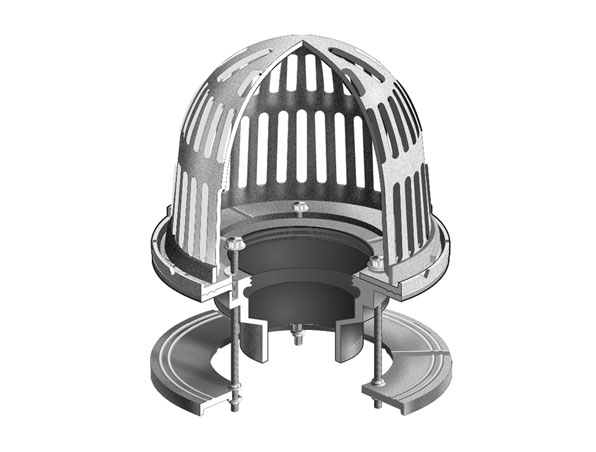

MIFAB Series R1100 lacquered cast iron roof drain with anchor flange, cast iron waterproofing membrane clamp ring with integral gravel stop, and standard self-locking polyethylene dome strainer, with a free area of 43 square inches.

Function

Used in any type of flat roofs and gutters. 8″ diameter body is ideal for applications with limited space. Dome provides for efficient drainage of rainwater and prevents debris from entering the drain line. Anchor flange and membrane clamp with tongue in groove design provides for secure grip of membrane and roof flashing materials.

Specifications

Series – R1100 Series – Standard Roof Drains
Weight – 7.00 lbs.
Deck Opening – 6 3/8″ (162 mm)
Deck Opening with Sump Receiver – 8 1/2″ (216 mm)
