R1200-JD-STR
Large Sump Roof Drain w/Extension Hardware and Sump Pan Designed for New and Replacement Roofing

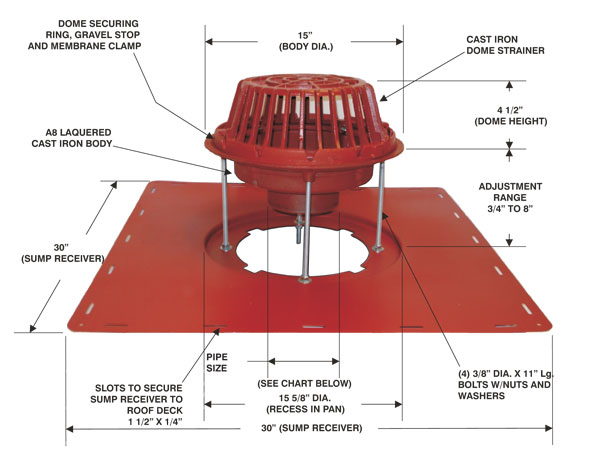

MIFAB Series R1200-JD-STR lacquered cast iron large sump 15″ diameter roof drain with anchor flange, large cast iron waterproofing membrane clamp ring with four bolt pattern, integral gravel stop, and standard self-locking cast iron dome strainer with a free area of 103 square inches. W/A8-BP-STR lacquered 18 guage sump pan, 30in x 30 in and HS-8 hardware.
Function
The units assembled together provide a roof drainage system with an extension range of 3/4in to 8in to accomodate for specified insulation heights provided by the roofer. Slots provided around the base of the sump pan permit the installer to secure this system to the top of the deck. The R1200-JD-STR is professionally designed for new and replacement installations.
Specifications
Series – R1200-JD-STR Series – Large Sump Roof Drain w/Extension Hardware and Sump Pan Designed for New and Replacement Roofing
Deck Opening – 10″ (254 mm)
Deck Opening with Sump Receiver – 15 3/4″ (400 mm)
