PR-100 Safety Rail System

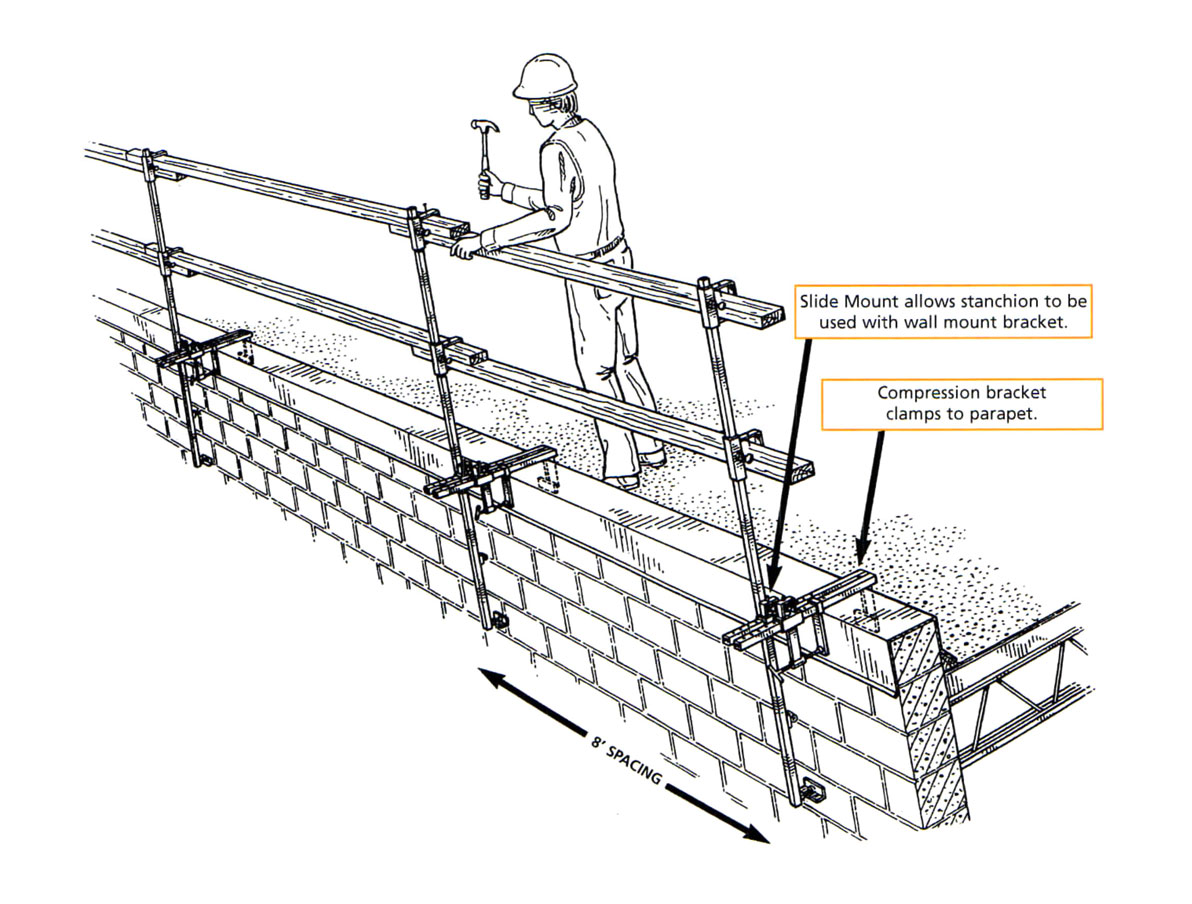

The PR 100 Guardrail System for that flat roofs is comprised of a stanchion and a compression bracket. Also available are two separate mounting brackets to fit different applications.

It will allow man and equipment to work up to the edge. The standard bracket is the Compression Bracket which will calmp to a parapet up to 14” wide. If the parapet is wider than 14”, extensions are available to fit any width.

The Stanchion has a guide welded on the side that will slide along the tube on the Compression Bracket, in toward the all and a spring-loaded pin will lock into place. Two men can easily set up 100 Ft. of the guardrail in 25 minutes. The system does not have to be dismantled to intalled flashing and coping.
